NZXT N9 X870E - AMD X870E AM5 ATX Gaming Motherboard for Ryzen 9000/8000/7000-20+2+1, DDR5, 4X M.2, PCIe 5.0, Wi-Fi 7, 5GbE, USB 4 – M.2 Quick-Release Latches, Full-Metal Cover, White PCB

NZXT N9 X870E - AMD X870E AM5 ATX Gaming Motherboard for Ryzen 9000/8000/7000-20+2+1, DDR5, 4X M.2, PCIe 5.0, Wi-Fi 7, 5GbE, USB 4 – M.2 Quick-Release Latches, Full-Metal Cover, White PCB
- AMD AM5 SOCKET — Ready for AMD Ryzen 9000, 8000, and 7000 series desktop processors.
- SUPERIOR POWER — 20+2+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.

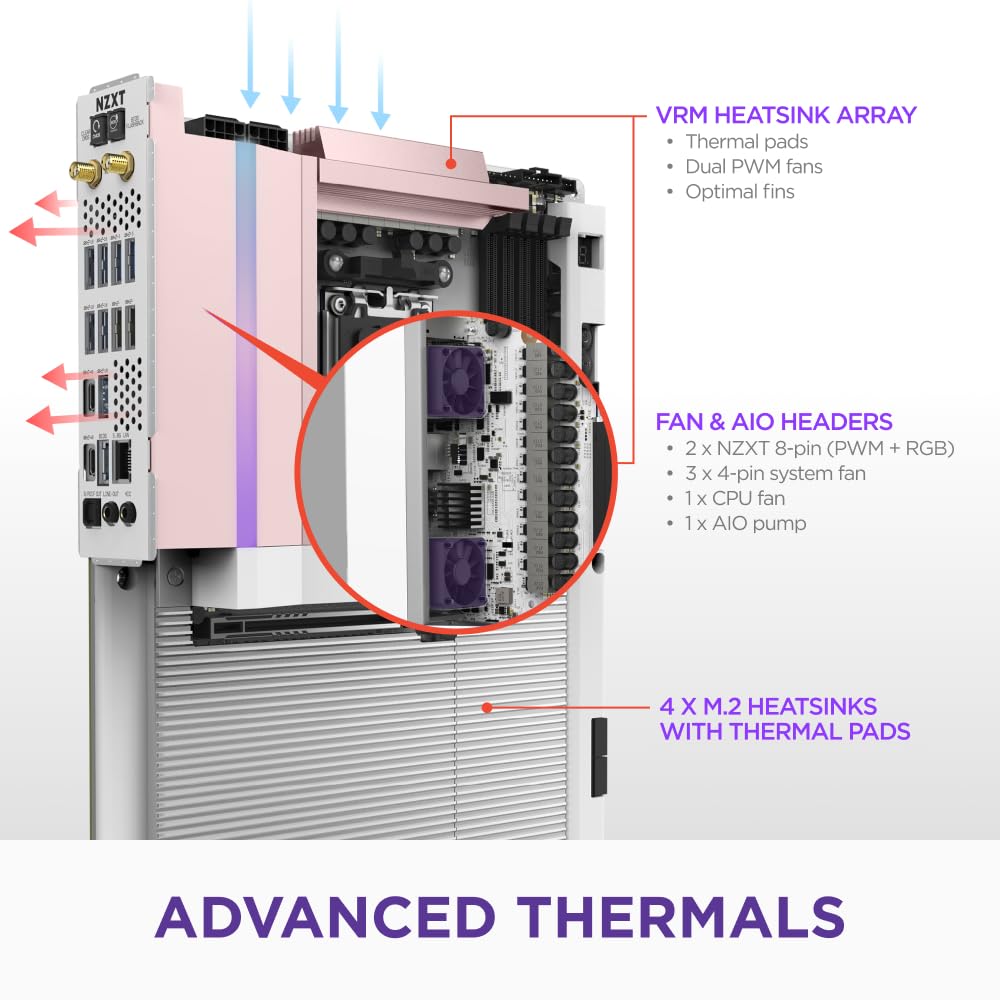

- ADVANCED COOLING — VRM heatsink array with thermal pads, dual PWM fans, and four dedicated M.2 heatsinks.
- PCIe 5.0 EXPANSION — One PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 MEMORY — Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- HIGH-SPEED STORAGE — Four M.2 slots, including one PCIe 5.0 and three PCIe 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.

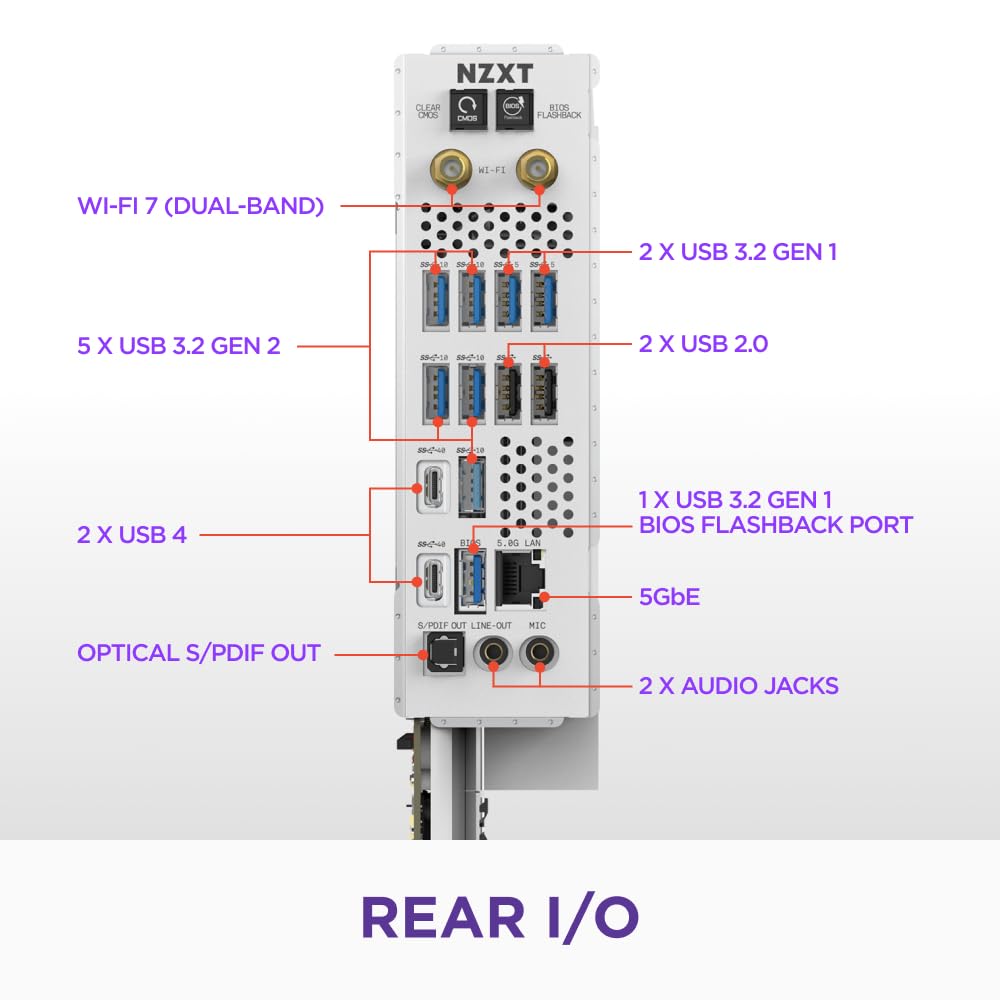

- NEXT-GEN CONNECTIVITY — USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.

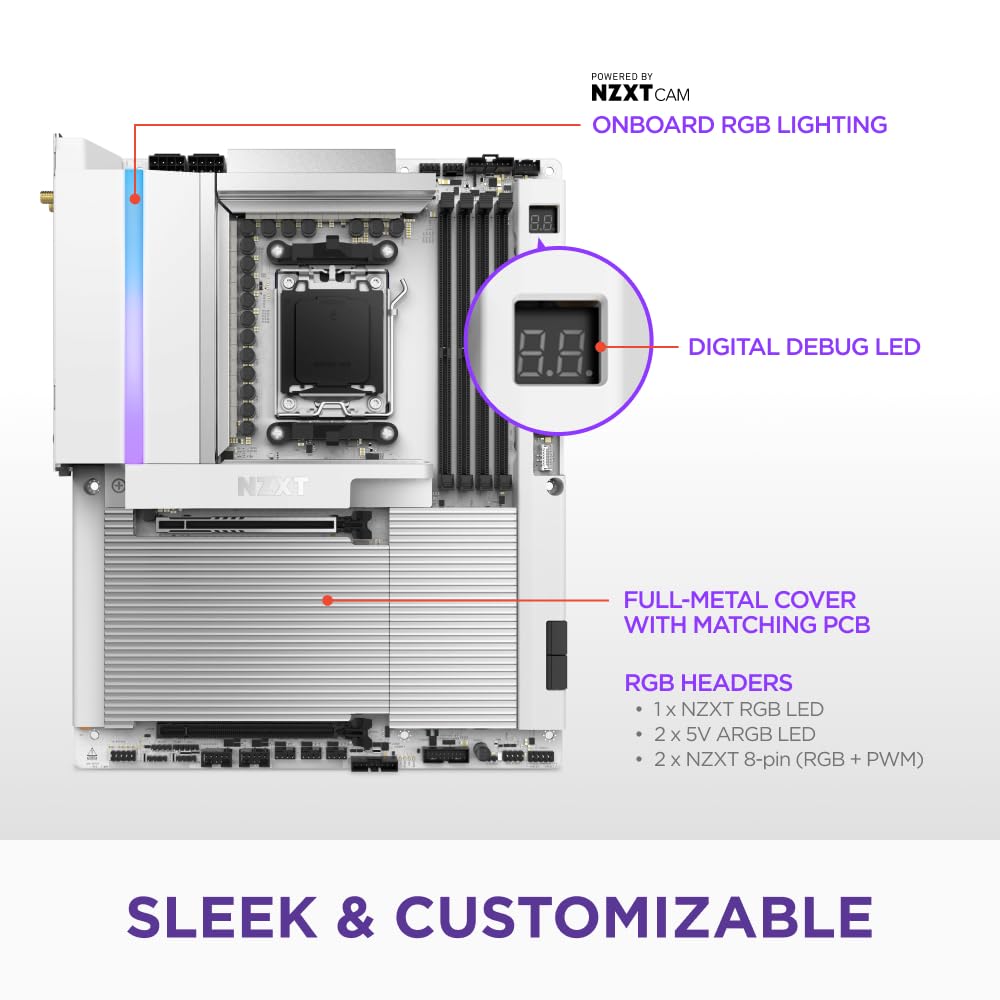

- SLEEK & STYLISH — A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- AMD AM5 SOCKET — Ready for AMD Ryzen 9000, 8000, and 7000 series desktop processors.
- SUPERIOR POWER — 20+2+1 power phase design with 110A Smart Power Stages and an 8-layer, 2-ounce copper PCB ensures stable, overclocking-ready power delivery.
- ADVANCED COOLING — VRM heatsink array with thermal pads, dual PWM fans, and four dedicated M.2 heatsinks.
- PCIe 5.0 EXPANSION — One PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 MEMORY — Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- HIGH-SPEED STORAGE — Four M.2 slots, including one PCIe 5.0 and three PCIe 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.
- NEXT-GEN CONNECTIVITY — USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.
- SLEEK & STYLISH — A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.
